Shimano BR-UR300 Disc Brake Ersatzteile

BR-UR300 Disc Brake BR Brake - Bremse

 Shimano BR Brake - Bremse BR-UR300 Disc Brake

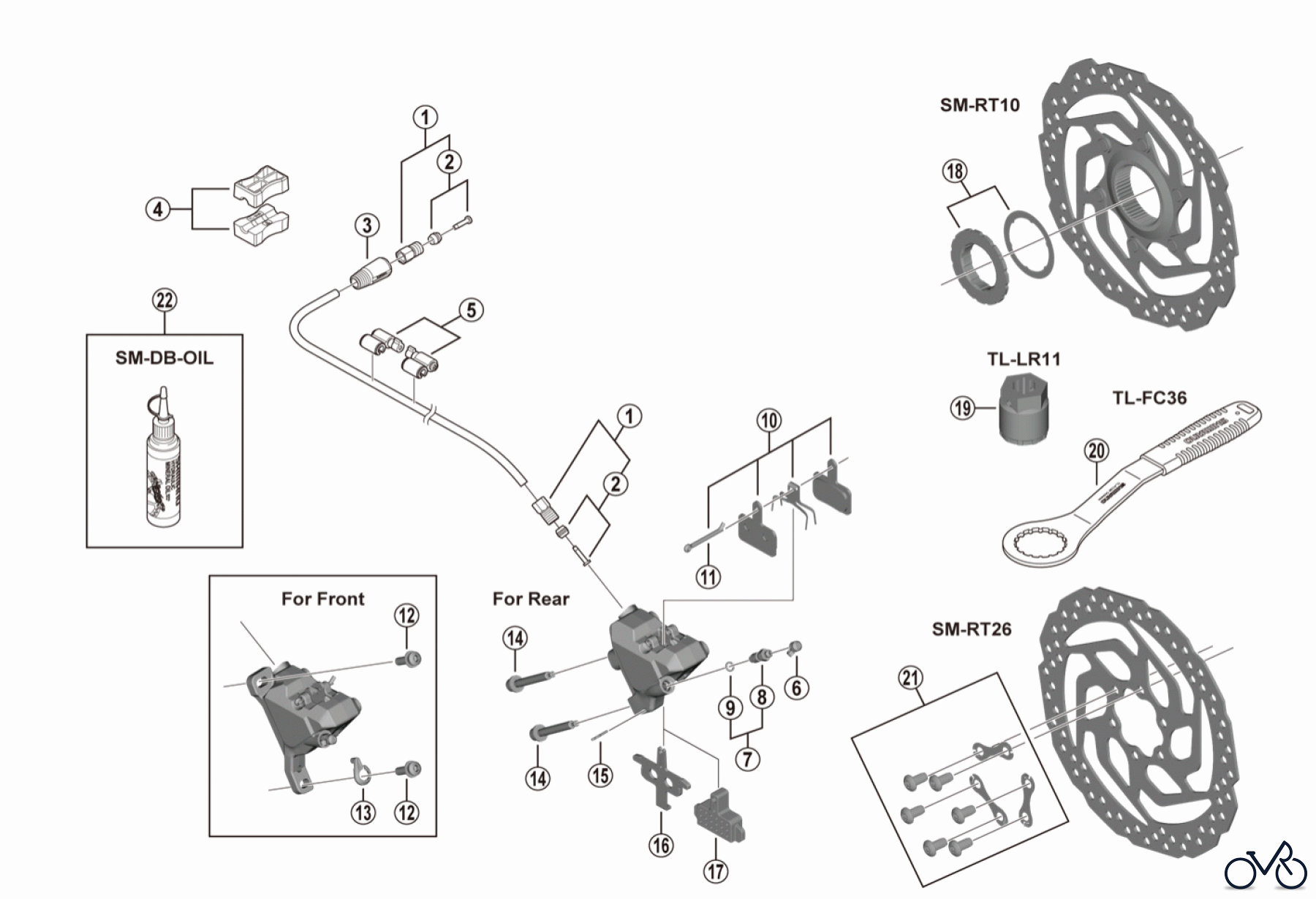

Hier finden Sie die Ersatzteilzeichnung für Shimano BR Brake - Bremse BR-UR300 Disc Brake. Wählen Sie das benötigte Fahrrad-Ersatzteil aus der Ersatzteilliste Ihres Shimano Fahrrads aus und bestellen Sie einfach online. Viele Shimano Ersatzteile halten wir ständig in unserem Lager für Sie bereit.

Häufig benötigte Shimano BR-UR300 Disc Brake Ersatzteile

 Caliper fixing screw C for 30 mm rear mount thickness
Artikelnummer: Y-8N208030
Suche nach: Y-8N208030
Hersteller: Fahrrad
Shimano Ersatzteil BR-UR300 Disc Brake
6.95 €
für EU incl. MwSt., zzgl. Versand
 Caliper fixing screw C for 25 mm rear mount thickness
Artikelnummer: Y-8N208020
Suche nach: Y-8N208020
Hersteller: Fahrrad
Shimano Ersatzteil BR-UR300 Disc Brake
6.95 €
für EU incl. MwSt., zzgl. Versand
BildNrArtikel NummerBezeichnung
1 Y-8AL98020 Flare nut unit Y8AL98020
2 Y-8H298040 Olive and connecter insert Y8H298040
3 Y-1XW04000 Cover Y1XW04000
4 Shimano  TL-BH61 Shimano original tool (2 pcs.)
Y-8H198030 TL-BH61 Shimano original tool (2 pcs.) Y8H198030
5 Y-83098040 SM-HANG Hose supporter A and B Y83098040
6 Shimano  Bleed nipple cap
Y-8B214000 Bleed nipple cap Y8B214000
7 Y-8G498010 Bleed nipple and seal ring Y8G498010
8 Y-8CL24100 Bleed nipple Y8CL24100
9 Shimano  O-ring for Bleed nipple
Y-8B511001 O-ring for Bleed nipple Y8B511001
10 E-BPB03SRESINA B03S Resin pad and spring with split pin 3 type EBPB03SRESINA
11 Shimano  Split pin
Y-8DB06100 Split pin Y8DB06100
12 Shimano  Caliper fixing screw A
Y-8N204000 Caliper fixing screw A Y8N204000
13 Shimano  Snap rng
Y-8N205000 Snap rng Y8N205000
14 Shimano  Caliper fixing screw C for 10 mm rear mount thickness
Y-8N208000 Caliper fixing screw C for 10 mm rear mount thickness Y8N208000
14 Y-8N208050 Caliper fixing screw C for 15 mm rear mount thickness Y8N208050
14 Shimano  Caliper fixing screw C for 20 mm rear mount thickness
Y-8N208010 Caliper fixing screw C for 20 mm rear mount thickness Y8N208010
14 Shimano  Caliper fixing screw C for 25 mm rear mount thickness
Y-8N208020 Caliper fixing screw C for 25 mm rear mount thickness Y8N208020
14 Shimano  Caliper fixing screw C for 30 mm rear mount thickness
Y-8N208030 Caliper fixing screw C for 30 mm rear mount thickness Y8N208030
14 Shimano  Caliper fixing screw C for 35 mm rear mount thickness
Y-8N208040 Caliper fixing screw C for 35 mm rear mount thickness Y8N208040
15 Shimano  Screw fixing pin
Y-8N207000 Screw fixing pin Y8N207000
16 Shimano  Pad spacer
Y-8PE03000 Pad spacer Y8PE03000
17 Shimano  Bleeding spacer
Y-8FZ05000 Bleeding spacer Y8FZ05000
18 Y-8JX98020 Lock ring (black) and washer Y8JX98020
19 Y-8PW04100 TL-LR11 Lock ring removal tool Y8PW04100
20 Shimano  TL-FC36 Lock ring removal tool
Y-13098000 TL-FC36 Lock ring removal tool Y13098000
21 Y-8NX98010 Rotor fixing screw and lock washer Y8NX98010
22 Y-83998020 Mineral oil (100 ml) Y83998020
22 Y-83998030 Mineral oil (500 ml) Y83998030
