Shimano SG-8R22 NEXUS 8-SPEED HUB w/Hi-Power Roller Brake Ersatzteile

SG-8R22 NEXUS 8-SPEED HUB w/Hi-Power Roller Brake SG Getriebenabe /Nabenschaltung

Inter-8 Hub, BR-IM70-R Inter-M Brake

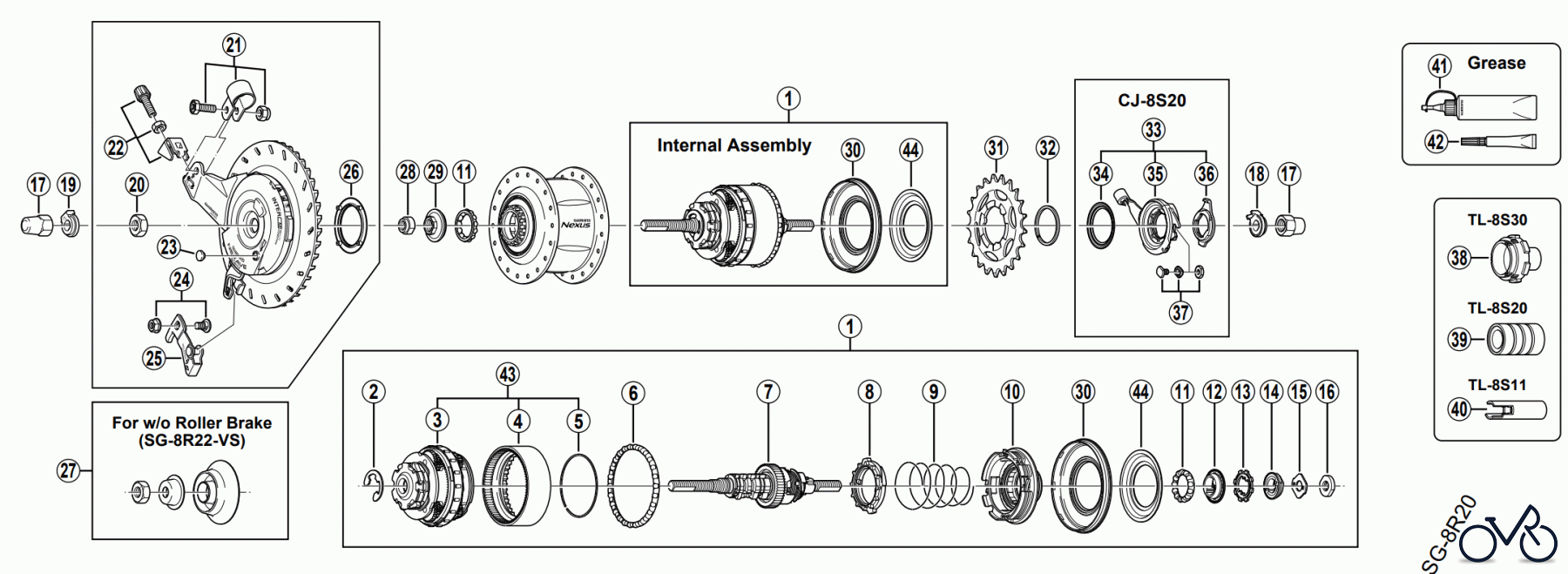

Hier finden Sie die Ersatzteilzeichnung für Shimano SG Getriebenabe /Nabenschaltung SG-8R22 NEXUS 8-SPEED HUB w/Hi-Power Roller Brake. Wählen Sie das benötigte Fahrrad-Ersatzteil aus der Ersatzteilliste Ihres Shimano Fahrrads aus und bestellen Sie einfach online. Viele Shimano Ersatzteile halten wir ständig in unserem Lager für Sie bereit.

BildNr	Artikel Nummer	Bezeichnung
1	Y-36R98010	Internal Assembly (Axle Length 184 mm) Y36R98010
2	Y-34R79000	Stop Ring (Ø 12 / 1.0 mm) Y34R79000
2	Y-34R79010	Stop Ring (Ø 12 / 1.3 mm) Y34R79010
2	Y-34R79020	Stop Ring (Ø 12 / 1.6 mm) Y34R79020
3	Y-34R98020	Carrier Unit Y34R98020
4	Y-35P11010	Ring Gear 1 Y35P11010
5	Y-34R80000	Ring Gear 1 Stop Ring Y34R80000
6	Y-34R98030	Ball Retainer O (3/16" x 26) Y34R98030
7	Y-34R98040	Hub Axle Unit (Axle Length 184 mm) Y34R98040
8	Y-34R98050	Clutch Unit Y34R98050
9	Y-34R21000	Return Spring A Y34R21000
10	Y-34R98060	Driver Unit Y34R98060
11	Y-34R98070	Ball Retainer P (3/16" x 13) Y34R98070
12	Y-34R98080	Right Hand Cone w/Seal Y34R98080
13	Y-34R12000	Driver Plate Y34R12000
14	Y-34R98090	Lock Washer Y34R98090
15	Y-34R09000	Stop Washer Y34R09000
16	Y-33Z07020	Right Hand Lock Nut (3.4 mm) Y33Z07020
17	Y-31414010	Cap Nut (3/8") Y31414010
18	Y-33Z20500	Non-turn Washer 5R (Yellow) Y33Z20500
18	Y-33M39600	Non-turn Washer 6R (Silver) Y33M39600
18	Y-33M39700	Non-turn Washer 7R (Black) Y33M39700
18	Y-34R85010	Non-turn Washer 8R (Dark Blue) Y34R85010
19	Y-33M39510	Non-turn Washer 5L (Brown) Y33M39510
19	Y-33M39610	Non-turn Washer 6L (White) Y33M39610
19	Y-33M39710	Non-turn Washer 7L (Gray) Y33M39710
19	Y-34R85000	Non-turn Washer 8L (Dark Green) Y34R85000
20	Y-75V13041	Brake Unit Fixing Nut (7.2 mm) Y75V13041
21	Y-75M98050	Brake Arm Clip Unit ( 15 mm) Y75M98050
21	Y-33F98090	Brake Arm Clip Unit (5/8") Y33F98090
21	Y-75M98060	Brake Arm Clip Unit (11/16") Y75M98060
21	Y-33F98100	Brake Arm Clip Unit (3/4") Y33F98100
22	Y-75E98010	Brake Cable Adjusting Bolt Unit Y75E98010
23	Y-75F11000	Grease Hole Cap Y75F11000
24	Y-75F98020	Inner Cable Fixing Bolt & Nut Y75F98020
25	Y-75E98020	Link Unit Y75E98020
26	Y-75T05000	Seal Ring for Brake Y75T05000
27	Y-34R98100	Left Hand Dust Cap Unit Y34R98100
28	Y-31Z06030	Lock Nut for Left Hand Cone Y31Z06030
29	Y-30898070	Left Hand Cone w/Dust Cap Y30898070
30	Y-36R98020	Right Hand Dust Cap A w/Seal Y36R98020
31	Y-32203220	Sprocket Wheel 16T (Silver) Y32203220
31	Y-32203420	Sprocket Wheel 18T (Silver) Y32203420
31	Y-32203520	Sprocket Wheel 19T (Silver) Y32203520
31	Y-32203620	Sprocket Wheel 20T (Silver) Y32203620
31	Y-33060000	Sprocket Wheel 21T (Silver) Y33060000
31	Y-33060100	Sprocket Wheel 22T (Silver) Y33060100
32	Y-32120100	Snap Ring C Y32120100
33	Y-74Y98120	CJ-8S20 Cassette Joint Unit Y74Y98120
34	Y-74Y18000	Driver Cap Y74Y18000
35	Y-74Y98130	CJ-8S20 Cassette Joint Y74Y98130
36	Y-33Z98020	Cassette Joint Fixing Ring Y33Z98020
37	Y-74Y98030	Inner Cable Fixing Bolt Unit Y74Y98030
38	Y-70800300	TL-8S30 Carrier Unit Tool Y70800300
39	Y-70800200	TL-8S20 Right Hand Cone Installation Tool Y70800200
40	Y-70800600	TL-8S11 Right Hand Cone Removal Tool Y70800600
41	Y-04120800	Internal Hub Grease (Net. 100g) Y04120800
41	Y-04120400	Roller Brake Grease (Net. 100g) Y04120400
42	Y-04140020	Roller Brake Grease (Net. 10g) Y04140020
43	Y-34R98140	Ring Gear Unit Y34R98140
44	Y-36R07000	Right Hand Dust Cap C Y36R07000
--	Y-34R0D000	Right Hand Hub Cup Y34R0D000
